Rechargeable 1.28KWh 12V 100Ah LiFePO4 Bluetooth RV Battery

Rechargeable lithium battery LiFePO4 Bluetooth RV Battery 12V100Ah With communication function

1.General Information

This specification defines the performance of rechargeable LiFePO4 battery pack TB-BL12200F-SC-M110X manufactured by SHENZHEN TOPBAND BATTERY CO.,LTD, describes the type, performance, technical characteristics, warning and caution of the battery pack. The battery pack support Bluetooth communication function. Through Android and IOS APP, can read the battery status and information. Especially due to the Android system’s openness, different smart phone manufacturer will have their own different Bluetooth hardware version and customized feature Android systems. So the APP may not work well on some smart phones(with Android system) due to compatible issue. It is necessary for the customer to confirm whether the phone is compatible for the APP.

2. Specification (@ battery initial temp 25°C)

NO	Items		Characteristics
2.1	Normal capacity		100Ah
2.2	Nominal energy		1.28KWh
2.3	Nominal voltage		12.8V
2.4	Internal resistance		≤20mΩ @1kHz AC
2.5	Series/ parallel application		Support max 4S or 4P
2.6	Normal charge voltage		14.6±0.2V
2.7	Float charge voltage(for Standby use)		13.8±0.2V
2.8	Allowed MAX charge current		100A/
2.9	Recommended charge current		≤50A
2.10	Allowed MAX discharge current		100A/30min
	Peak current		350A/3s
2.11	End of discharge voltage		10.0V
2.12	Dimension		L 318±2 mm
			W 165±2 mm
			H 225±2 mm
2.13	Weight (No accessories)		About:10Kg
2.14	Operation temperature	Charge	0～45℃
		Discharge	-20～60℃
2.15	Self-discharge rate	Residual capacity	≤3%/Month ≤15%/ year
		Recover capacity	≤1.5%/Month; ≤8%/ year
2.16	Storage environment	≤1month	-20～+60℃,5～75%RH
		≥3month	-10～+45℃,5～75%RH

3.Electrical Characteristics & Test Condition

Normal charge:Charge battery under CC(0.33C)/CV(14.6V) mode until over charge protection or the charge current reduce to 0.05C,

and then rest for 1h.

NO	Items	Criterion		Condition
3.1	Normal Capacity	100Ah		After Normal charge, discharge @0.33C current to the end of discharge voltage.
3.2	Internal Impedance	≤20mΩ		@50% SOC @1kHz AC internal resistance test instrument.
3.3	Short circuit protection	Auto cutoff load when short circuit		Connect the positive and negative of this battery pack through a lead with 0.1Ω resistance.
3.4	Cycle life @DOD80%	≥4000 cycles		After Normal charge,discharge 80%DOD @0.33C current to the end of discharge voltage. Repeat above process until discharge capacity reduce to 80% of initial value.
3.5	Discharge temperature characteristic@0.2C	-20℃(6h)	≥60%	Capacity @specified temperature Capacity @ 25℃
		0℃(6h)	≥80%
		25℃(4h)	≥100%
		55℃(4h)	≥95%

4.Bluetooth introduction

Rechargeable 12V200Ah Bluetooth Lithium Battery High Security for RV and Car Usage Lifepo4 Material 1

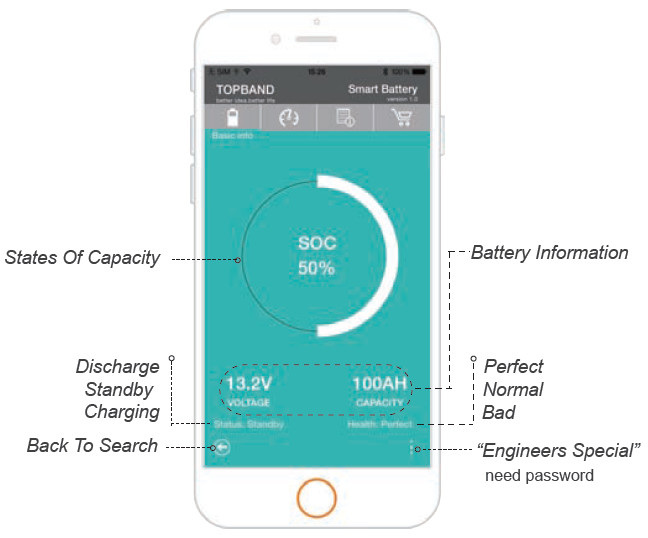

Topband Bluetooth is a technology that allows users to connect Topband battery directly with their mobile phones. Users can use Bluetooth to get the information( Such as the SOC, operating temperature, cycle times, voltage, capacity, etc) of the battery clearly.

Rechargeable 12V200Ah Bluetooth Lithium Battery High Security for RV and Car Usage Lifepo4 Material 2

Setting up the connection between the battery and the phone is quick and easy. Users just need to download the TB APP from Google play/ APP store, and operate it near the battery. The interface of the APP can be also customized if needed.

Compared to the other communication ways, it is wireless and of high security, which makes Bluetooth become more and more porpular among the world.

If any interest, do not be hesitate to contact with us! We will offer professional service to our customers!
