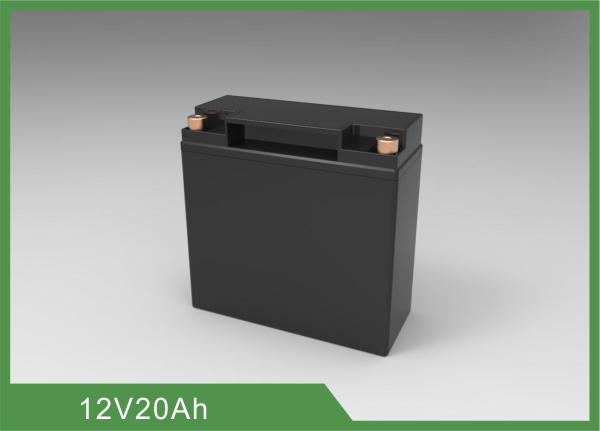

1kHz 12V 20Ah Lifepo4 Deep Cycle Battery MSDS For LED Lighting

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

1kHz 12V 20Ah Lifepo4 Deep Cycle Battery MSDS For LED Lighting

Ask Lasest Price
Brand Name :	Topband
Model Number :	TB-BL1220F-S115D
Certification :	MSDS
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	450Mwh/year
Delivery Time :	4~6weeks for samples; 2~4weeks for mass production

Add to Cart

Product Details
Company Profile

1kHz 12V 20Ah Lifepo4 Deep Cycle Battery MSDS For LED Lighting

Rechargeable 12V 20Ah Lifepo4 Smart Bluetooth Battery for LED Lighting

1. Smart battery packs 12V 20Ah advantage

long life & deep cycle( over 2000cycles @ 100%DOD)
with built-in PCM/BMS protection
super quick charge/discharge performance
safe pressure valve design ( no explosion, no fire)
high energy density
low self-discharge( <3% per month,<15% per year)
1/3 weight & 1/2 volume of lead acid battery
eco-friendly
high consistency
no memory effect
easily replace lead acid battery
patent Bluetooth connection feature optional, enable IOS & Android app to monitor instant battery status(SOC, battery voltage, remain AH, charge current, temp., life cycle, error).

2. Smart battery 12V 20A Specification

NO	Items		Description
1	Nominal Voltage		12.8V
2	Normal Capacity		20Ah
3	Internal Resistance		≤50mΩ
4	Battery operation temperature range @charging		0~45℃
5	Normal charge voltage		14.6±0.1V
6	Recommended float charge voltage(for Standby use)		13.9±0.1V
7	Allowed MAX charge current		20A@Battery initial Temp 25±5℃
8	Recommended charge current		≤10A
9	Battery operation temperature range @discharging		-20~60℃
10	Output Voltage Range		8.0~14.6V
11	Allowed discharge current		30A withstand 30min @Battery initial Temp 25±5℃
12	Recommended discharge current		≤20A
13	Pulse discharge current		55A withstand 3s
14	Discharge Cut-off voltage		8.0V
15	Dimension		Length 180.5±2mm
			Width 76±2mm
			Height 166±2mm
16	Weight		Approx. 3.0Kg
17	Storage Temperature & Humidity Range	Short: within one month	-20~35℃, 45~75%RH
		Long term: above one month	-10~30℃, 45~75%RH
18	Self-discharge rate	Residual capacity	≤3% per month; ≤15% per year
		Reversible capacity	≤1.5%per month; ≤8% per year

3. Electrical Characteristics & Test Condition

@Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

NO	Items	Criterion		Condition
1	Internal Impedance	≤50mΩ		Test the internal resistance of 50% SOC battery pack with 1kHz AC internal resistance test instrument.
2	Capacity	≥20Ah		Rest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
3	Short circuit protection	Automatically cutoff discharging when short circuit, and release after remove the lead.		Connect the positive and negative of this battery pack through a lead with the resistance less than 5mΩ.
4	MAX charge Current	20A		Charging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
5	MAX discharge Current	30A		Discharging with this current for more than 0.5h and the added temperature of battery pack less than 35℃.
6	Cycle life (DOD%100)	≥2000cycle		Discharge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
7	Discharge Temperature Characteristics	-20℃	≥70%	At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
		0℃	≥80%
		25℃	100%
		55℃	≥95%
8	Charge Retention ability	remain capacity≥90%		Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

4. Storage & Transportation

Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
The battery should be stored in 50% SOC during transportation.
The battery need to be charged every 6 months if out of use
Keep the battery against dropping, turning over and serious stacking during loading.

5. Our service

Customized is allowed;
Support imprint your logo on products;
OEM
Products have proceeded comprehensive testing before shipment

6. LED light battery 12V 20Ah dimension

Eco - Friendly 12v 20ah Lifepo4 Battery , Lithium Phosphate Batteries For Solar Lights 0

Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
