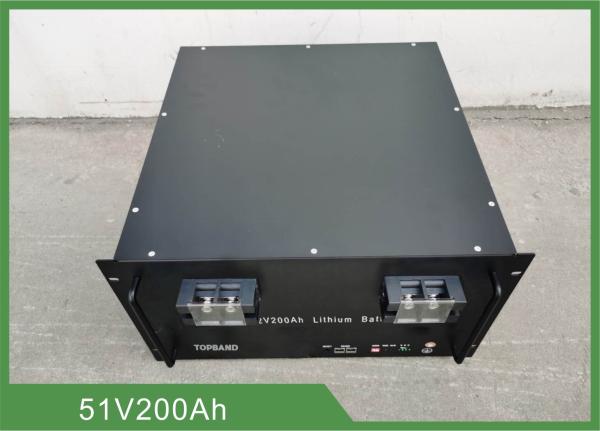

19'' Rack 10.24KWh 51.2V 200Ah Telecom Back Up Battery

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

19'' Rack 10.24KWh 51.2V 200Ah Telecom Back Up Battery

Ask Lasest Price
Brand Name :	Topband/OEM/ODM
Model Number :	TB48200F-T110F
Certification :	MSDS, UN38.3
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	450 Mwh / Year
Delivery Time :	2~3 weeks for sample, 4~6 weeks for bulk order after payment

Add to Cart

Product Details
Company Profile

19'' Rack 10.24KWh 51.2V 200Ah Telecom Back Up Battery

Telecom Back up Battery 51.2V 200Ah Lifepo4 battery 19'' Rack

About us

Shenzhen Topband Battery Co., Ltd. is an expert manufacturing LiFePO4 battery, who founded in 1996 and listed in Shenzhen of China in 2007. There are over 600 R & D engineers and about 6,000 experienced workers, occupies 100,000 square meters Topband industrial park. We can provide One-Stop Solution of renewable energy, from cell, BMS/PCM to battery pack assembling.

Our culture is respect and agree with the difference culture and habit from all over the world, make customer success, developing with our customers, continue to self-improvement, commitment to excellence.

Our mission is creating valuable products to win the market for customer, our vision is to a respected intelligent Eco-friendly energy provider.

Telecom Batteries 48V 50Ah LFP Battery 3U Rack For Tele Communication Application

1. General Information

This specification defines the performance of TB48200F-T110F manufactured by TOPBAND, describes the type, performance, technical characteristics, warning and caution of the battery pack.

2. Battery Specification(@ 25±5℃ (68℉~86℉)

NO	Items		Characteristics
2.1	Normal capacity		200Ah
2.2	Nominal energy		10.24KWh
2.3	Nominal voltage		51.2V (LFP-16S)
2.4	Internal resistance		≤50mΩ @1kHz AC
2.5	Normal charge voltage		56.8±0.2V
2.6	Float charge voltage(for Standby use)		54.4-55.2V
2.7	Allowed MAX charge current		100A
2.8	Recommended charge current		≤25A
2.9	Allowed MAX discharge current		100A
2.10	End of discharge voltage		40.0V
2.11	Dimension		Length 482±2 mm
			height 266±2 mm
			Depth 460±2 mm
2.12	Weight		Approx. 70kg
2.13	Working temperature	Charge	3～45℃
		Discharge	-10～55℃
2.14	Self-discharge rate	Residual capacity	≤3%/Month; ≤15%/ year
		Recover capacity	≤1.5%/Month; ≤8%/ year
2.15	Storage environment	≤1month	-20～60℃, 5～75%RH
		≥3month	-10～45℃, 5～75%RH
		Recommend environment	15～35℃, 5～75%RH

3. Electrical Characteristics & Test Condition

Testing Conditions: Ambient Temperature: 25±5℃ (68℉~86℉); Huminity:45%~75%.

Normal charge:Charge battery under CC(0.33C)/CV(58.4V) mode until over charge protection or the charge current reduce to 0.05C, and then rest for 1h.

NO	Items	Criterion		Condition
3.1	Normal Capacity	100Ah		After Normal charge, discharge @0.33C current to the end of discharge voltage.
3.2	Internal Impedance	≤80mΩ		@50% SOC @1kHz AC internal resistance test instrument.
3.3	Short circuit protection	Auto cutoff load when short circuit		Connect the positive and negative of this battery pack through a lead with 0.1Ω resistance.
3.4	Cycle life @DOD100%	≥2000 cycles		After Normal charge,discharge @0.33C current to the end of discharge voltage. Repeat above process until discharge capacity reduce to 80% of initial value.
3.5	@0.33C Discharge temperature characteristic@0.33C	-20℃ (-4℉)	≥70%	Capacity @specified temperature Capacity @ 25℃ (77℉)
		0℃ (32℉)	≥80%
		25℃ (77℉)	≥100%
		55℃ (131℉)	≥95%
3.6	Capacity retention rate	remain capacity ≥96%		After normal charge, store the battery @25±5℃ (68℉~86℉) for 28days, then discharge capacity @0.33C,the retention capacity accord with criterion.

4. Circuit Protection

The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

No	Item	Content	Criterion
4.1	Over charge	Over-charge warning for each cell	3.60±0.03V
		Over-charge protection for each cell	3.70±0.03V
		Over-charge release for each cell	3.38±0.05V
		Over-charge release method	Under the release voltage
4.2	Over discharge	Over-discharge warning for each cell	2.80±0.05V
		Over-discharge protection each cell	2.50±0.05V
		Over-discharge release for each cell	2.90±0.10V
		Over-discharge release method	Charging
4.3	Over current	Charge over current warning	55±3A
		Charge over current protection	60A±3A
		Charge over current release	Discharge or auto release after 1min
		Discharge over current warning	55±3A
		Discharge over current protection	60A±3A
		Discharge over current release	Charge or auto release after 1min
		Short circuit protection	Available
4.4	Temperature	Charge over temperature protection	Protect@55±3℃; Release@50±3℃;
		Charge under temperature protection	Protect@0±3℃; Release@5±3℃
		Discharge over temperature protection	Protect@65±3℃; Release@60±3℃;
		Discharge under temperature protection	Protect@-20±3℃; Release@-15±3℃;

5.1 Installation

5.2 RS485 Connection
