1. General Information
This specification defines the performance of Telecom Communication Batteries 48V 50Ah LFP Battery 3U Rack TB4850F -T110P manufactured by TOPBAND, describes the type, performance,
technical characteristics, warning and caution of the battery pack.
2. Battery Specification(@ 25±5℃ (68℉~86℉)
| NO | Items | Characteristics |
| 2.1 | Normal capacity | 50Ah |
| 2.2 | Nominal energy | 2.4KWh |
| 2.3 | Nominal voltage | 48V (15Serial-cell) |
| 2.4 | Internal resistance | ≤40mΩ @1kHz AC |
| 2.5 | Normal charge voltage | 54.75±0.3V |
| 2.6 | Float charge voltage(for Standby use) | 51.75±0.3V |
| 2.7 | Allowed MAX charge current | 50A |
| 2.8 | Recommended charge current | ≤25A |
| 2.9 | Allowed MAX discharge current | 50A |
2.10 | End of discharge voltage | 37.5V |
| 2.11 | Dimension | Length 482±2 mm |
| height 133±2 mm |
| Depth 360±2 mm |
| 2.12 | Weight | Approx. 28kg (61.7Ib) |
| 2.13 | Working temperature | Charge | 0～45℃ (32℉~113℉) |
| Discharge | -20～60℃ (-4℉~140℉) |
| 2.14 | Self-discharge rate | Residual capacity | ≤2%/Month; ≤10%/ year |
| Recover capacity | ≤1%/Month; ≤6%/ year |
| 2.15 | Storage environment | ≤1month | -20～35℃ (-4℉~95℉), 45～75%RH |
| ≥3month | -10～35℃ (14℉~95℉), 45～75%RH |
| Recommend environment | 15～30℃ (59℉~86℉), 45～75%RH |
3. Electrical Characteristics & Test Condition
Testing Conditions: Ambient Temperature: 25±5℃ (68℉~86℉); Huminity:45%~75%.
Normal charge:Charge battery under CC(0.33C)/CV(58.4V) mode until
over charge protection or the charge current reduce to 0.05C, and
then rest for 1h.
| NO | Items | Criterion | Condition |
| 3.1 | Normal Capacity | 50Ah | After Normal charge, discharge @0.33C current to the end of
discharge voltage. |
| 3.2 | Internal Impedance | ≤40mΩ | @50% SOC @1kHz AC internal resistance test instrument. |
| 3.3 | Short circuit protection | Auto cutoff load when short circuit | Connect the positive and negative of this battery pack through a
lead with 0.1Ω resistance. |
| 3.4 | Cycle life @DOD80% | ≥5000 cycles | After Normal charge,discharge @0.33C current to the end of
discharge voltage. Repeat above process until discharge capacity
reduce to 80% of initial value. |
| 3.5 | @0.33C Discharge temperature characteristic@0.33C | -20℃ (-4℉) | ≥70% |
Capacity @specified temperature Capacity @ 25℃ (77℉)
|
| 0℃ (32℉) | ≥80% |
| 25℃ (77℉) | ≥100% |
| 55℃ (131℉) | ≥95% |
| 3.6 | Capacity retention rate | remain capacity ≥96% | After normal charge, store the battery @25±5℃ (68℉~86℉) for 28days, then discharge capacity @0.33C,the retention capacity
accord with criterion. |
4. Circuit Protection
The batteries are supplied with a LiFePO4 Battery Management System
(BMS)that can monitor and optimized each single prismatic cell
during charge & discharge, to protect the battery pack overcharge,
over discharge, short circuit. Overall, the BMS helps to ensure
safe and accurate running.
| No | Item | Content | Criterion |
| 4.1 | Over charge | Over-charge warning for each cell | 3.55±0.03V |
| Over-charge protection for each cell | 3.75±0.03V |
| Over-charge release for each cell | 3.40±0.05V |
| Over-charge release method | Under the release voltage |
| 4.2 | Over discharge | Over-discharge warning for each cell | 2.80±0.05V |
| Over-discharge protection each cell | 2.50±0.05V |
| Over-discharge release for each cell | 3.00±0.10V |
| Over-discharge release method | Charging |
| 4.3 | Over current | Charge over current warning | 55±3A |
| Charge over current protection | 60A±3A |
| Charge over current release | Discharge or auto release after 1min |
| Discharge over current warning | 55±3A |
| Discharge over current protection | 60A±3A |
| Discharge over current release | Charge or auto release after 1min |
| Short circuit protection | Available |
| 4.4 | Temperature | Charge over temperature protection | Alarm@50±3℃;Protect@55±3℃; Release@50±3℃; |
| Charge under temperature protection | Alarm@0±3℃;Protect@0±3℃; Release@5±3℃ |
| Discharge over temperature protection | Alarm@60±3℃;Protect@65±3℃; Release@60±3℃; |
| Discharge under temperature protection | Alarm@-15±3℃;Protect@-20±3℃; Release@-15±3℃; |
5. User guide

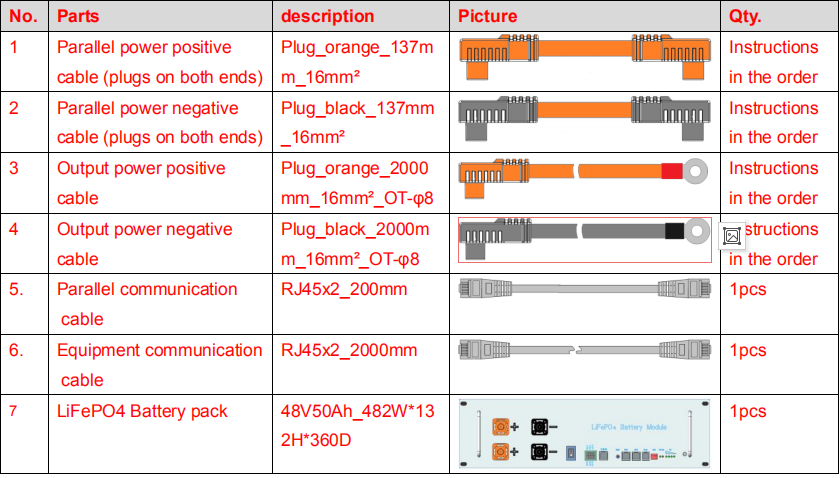

5.1 Packing list
5.2 Operation Introduction
Reset RS485 RS232 Dial switch RUN LED alarm LED SOC LED
5.3 System operation
Wake up
System will go to Sleep mode without load or charger for 24h. The
following operations can be used to
wake up:
a. Automatically wakeup when connecting a charger；
b. Press on the “reset” key for 3s；
System standby and sleep
Sleep mode:System will immediately go to Standby mode without load
or charger, and RUN LED will
flash (1s ON, 1s OFF).
After 24h later,the system will automatically go to sleep mode. And
then all LEDs in panel will turnoff.
System will go to sleep mode through press the reset key for 3s.
5.4 Installation Drawing
Case dimension: 482(Width) * 360(Depth) * 133(height) mm；
Handle Depth:35mm; weight:Approx.28kg.
