0.83kg Environment Friendly 12V LED Light Battery With 6Ah Capacity

Product Categories

Shenzhen Topband Battery Co., Ltd

Contact Now

Name: 083kg Environment Friendly 12V LED Light Battery With 6Ah Capacity
Brand: Topband
Price: 1 USD

Ask Lasest Price
Brand Name :	Topband
Model Number :	TB1206F-S115A
Certification :	MSDS
Supply Ability :	450Mwh/year
Delivery Time :	2~4weeks for samples; 4~6weeks for mass production
Price :	Negotiable
Payment Terms :	L/C, T/T

Add to Cart

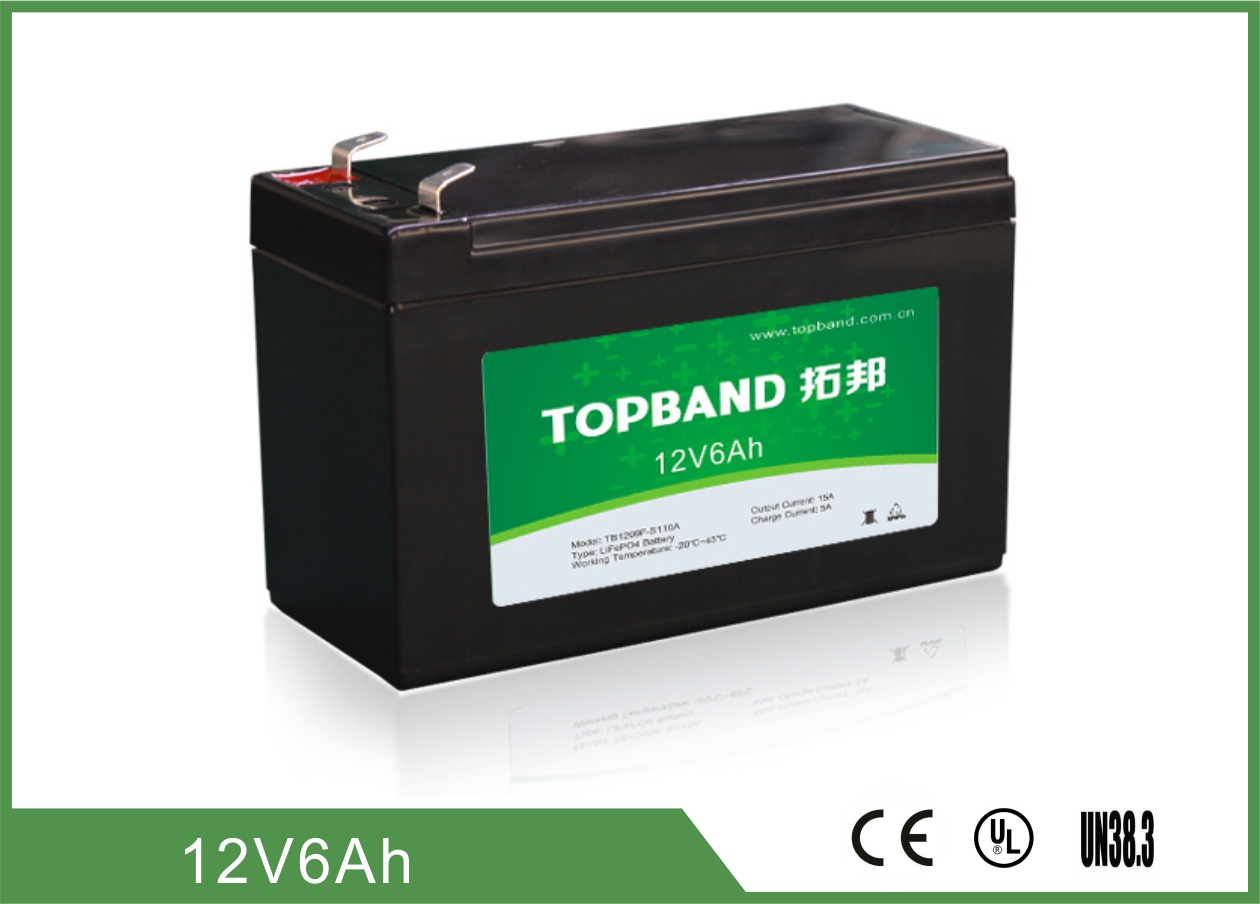

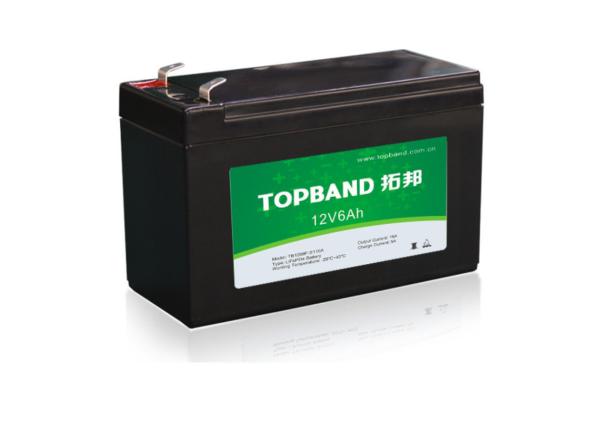

0.83kg Environment Friendly 12V LED Light Battery With 6Ah Capacity

Replace the traditional lead acid batteries

long lifespan & powerful & reliable

lighter & smaller and environment friendly

1. LED Light battery packs 12V 6Ah advantage

2. LED Light battery 12V 6A Specification

NO.	Items		Characteristics	Testing Methods
1	Nominal Voltage		12V	Follow
2	Nominal Capacity		6Ah	Follow
3	Minimum Capacity		5.7Ah	Follow< GB/T18287-2000 >
4	Battery internal Impedance		Internal Impedance≤60mΩ	Internal Impedance Testing Machine( HIOKI 3555,1kHz )
5	Shipment Voltage		12.8-13.6V	Multi-meter
6	Dimension	Length	150mm	Vernier caliper
		Wide	65mm
		Height	95mm
		gross weight	Approx:0.83kg	electronic scale
7	Working Temperature	Charge	0~45℃,45~85%RH	Temperature & Humidity Instruments
7	Working Temperature	Discharge	-20~55℃,45~85%RH	Temperature & Humidity Instruments
8	Storage Temperature & Humidity Range	Short: above one month	-20~+55℃,45~85%RH	Temperature & Humidity Instruments
		Medium: above three months	0~+45℃,45~85%RH
		Long:above one year	+5~+30℃,45~85%RH
9	Allowed maximum continuou charg current		6A(1C)	Multi-meter
10	Allowed maximum continuous discharge current		6A(1C)	Multi-meter
11	Allowed maximum reverse charge voltage		NO Allowed	/
12	Allowed maximum charge voltage		14.6±0.1V	Multi-meter
13	Discharge cut-off voltage		9±1V	Multi-meter

3. Deep cycle lithium battery packs 12V 6Ah safety test

@Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.

No.	Items	Standards	Testing Methods
1	Short-Circuit	The battery should be no remarkable breakage, distortion. And charge normally.	Use a resistor with less than 0.05Ω to make the battery short circuit for 1 hour. The appearance and characteristics are normal.
2	Over Discharge Protection Test	The battery should be no remarkable breakage, distortion. Appearance and charge are normal.	Discharge the battery at the rate of 2A with the load of 30Ω for 24h . Charging for 10sec with specified adapter , and check the voltage(≥8.0V)
3	Impact Test	The battery should be no explosion or catch fire	Place a full charged battery on a flat and put a stainless steel stick (Diamond 15.8mm) in the middle of the battery upright . Beat the steel stick with 9.1Kg

4. Storage & Transportation

Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
Battery should be stayed in the warehouse -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
The battery should be stored in 50% SOC during transportation.
The battery need to be charged every 6 months if out of use
Keep the battery against dropping, turning over and serious stacking during loading.

5. Our service

Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
