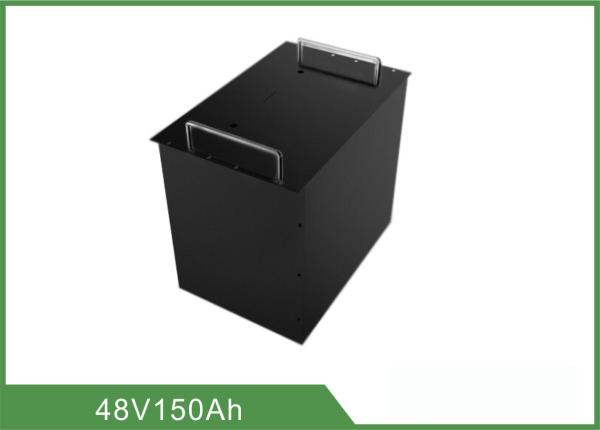

Environmental Friendly Battery Energy Storage System 48V 150AH

    Buy cheap Environmental Friendly Battery Energy Storage System 48V 150AH from wholesalers

    Buy cheap Environmental Friendly Battery Energy Storage System 48V 150AH from wholesalers
    • Buy cheap Environmental Friendly Battery Energy Storage System 48V 150AH from wholesalers

    Environmental Friendly Battery Energy Storage System 48V 150AH

    Ask Lasest Price
    Brand Name : Topband
    Model Number : TB48150F-T104A
    Certification : MSDS,CE
    Supply Ability : 450Mwh/year
    Delivery Time : 2~4weeks for samples; 4~6weeks for mass production
    Price : Negotiable
    Payment Terms : L/C, T/T
    • Product Details
    • Company Profile

    Environmental Friendly Battery Energy Storage System 48V 150AH

    Environmental Friendly Home Battery Storage Systems 48V 150AH


    1. General Information

    This specification defines the performance of rechargeable LiFePO4 battery pack TB48150F-T104A manufactured by Shenzhen Topband Battery Co., Ltd, describes the type, performance, technical characteristics, warning and caution of the battery pack.


    2. Specification

    NOItemsDescription
    Normal specification
    1Nominal Voltage51.2V
    2Normal Capacity150Ah
    3Internal Resistance≤20mΩ
    Standard Charge
    4Battery operation temperature range @charging0~45℃
    5Normal charge voltage58.4±0.4V
    6Recommended float charge voltage(for Standby use)55.6±0.4V
    7Allowed MAX charge current60A@Battery initial Temp 25±5℃
    8Recommended charge current≤40A
    Standard discharge
    9Battery operation temperature range @discharging-20~60℃
    10Output Voltage Range36.8~58.4V
    11Allowed discharge current100A withstand 30min @Battery initial Temp 25±5℃
    12Peak discharge current350A withstand 3s
    13Discharge Cut-off voltage36.8V
    Mechanical Characteristics
    14DimensionLength 520±3mm
    Width 269±3mm
    Height 221±3mm
    15WeightApprox. 37.7Kg
    Storage
    16Storage Temperature & Humidity RangeShort: within one month-20~35℃, 45~75%RH
    Long term: above one month-10~30℃, 45~75%RH
    17Self-discharge rateResidual capacity≤3% per month; ≤15% per year
    Reversible capacity≤1.5%per month; ≤8% per year

    3. Electrical Characteristics & Test Condition

    Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.


    NOItemsCriterionCondition
    1Internal Impedance≤20mΩTest the internal resistance of 50% SOC battery pack with 1 kHz AC internal resistance test instrument.
    2Capacity≥150AhRest for 1 hour after fully charged, then discharge with 0.33C current until the battery reaches the discharge cutoff voltage. Repeat above process for three times, if the discharge time is not less than 180 minutes, you can stop and define the Discharging current*time value (Ah) as battery capacity.
    3Short circuit protection/Not allowed.
    4MAX charge Current60ACharging with this current for more than 0.5h and the added temperature of battery pack less than 20℃.
    5MAX discharge Current60ADischarging with this current for more than 10min and the added temperature of battery pack less than 35℃.
    6

    Cycle life (DOD%100)

    ≥2000cycleDischarge with the current of 0.5C until it can’t discharge, and then rest it for 1h. Charge the battery following CC(0.33C)/CV(14.6V) mode to full capacity, and then rest it for 1h. Repeat above process until full charged capacity is no more than 80% of normal value. Accumulated times is defined as cycle life.
    7

    Discharge Temperature

    Characteristics

    -20℃≥70%At 25±5℃ discharge the battery with the current of 0.33C to the cut-off voltage. Store the battery at various temperatures for 2h and discharge the battery with 0.33C to the cut-off voltage. Record the ratio between discharging & charging capacity.
    0℃≥80%
    25℃100%
    55℃≥95%
    8Charge Retention abilityremain capacity≥90%Charge the battery to full capacity and store it for 28days, and then discharge it with 0.33C to the cut-off voltage.

    4. Circuit Protection

    The batteries are supplied with a LiFePO4 Battery Management System (BMS)that can monitor and optimized each single prismatic cell during charge & discharge, to protect the battery pack overcharge, over discharge, short circuit. Overall, the BMS helps to ensure safe and accurate running.

    Test itemContentCriterion
    Over chargeOver-charge protection for each cell3.90±0.03V
    Over-charge release for each cell3.60±0.05V
    Over-charge release methodUnder the release voltage
    Over dischargeOver-discharge protection for each cell2.30±0.05V
    Over-discharge release for each cell2.80±0.05V
    Over-discharge release methodCharging
    Over currentDischarge over current protection400±50A
    Protection delay time50~200ms
    Over current release methodRelease after 30s.

    Over & Lower

    Temperature

    Battery charge/discharge over temperatureProtection @65±5℃
    Release @55±5℃
    Battery charge lower temperatureProtection @-5±5℃
    Release @5±0℃

    5. Pack Diagram
