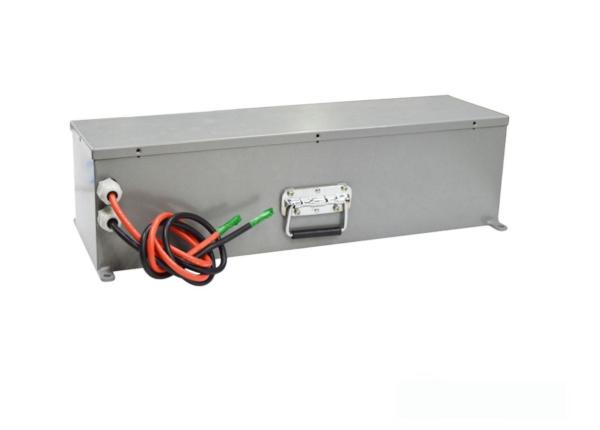

Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS

    Buy cheap Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS from wholesalers

    Buy cheap Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS from wholesalers
    • Buy cheap Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS from wholesalers

    Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS

    Ask Lasest Price
    Brand Name : Topband
    Model Number : TB7240F-S113A
    Certification : ISO9001, ISO14001, MSDS
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 450Mwh/year
    Delivery Time : 2~4weeks for samples; 4~6weeks for mass production
    • Product Details
    • Company Profile

    Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS

    Pollution - Free 72v Lithium Battery Pack 40Ah For Energy Storage Systen / UPS

    1. Deep cycle lithium battery pack 72V 40Ah feature

    • High energy density
    • High working voltage for single battery cells
    • Pollution-free
    • Long cycle life
    • No memory effect
    • Capacity, resistance, Voltage, platform time consistency is good
    • With short-circuit production function, safe and reliable
    • Factory price & High quality
    • Good consistency, low self discharge
    • Light weight, small size
    • High discharge rate
    • Quality and security guaranted,with CE,ROHS approval.
    • Wide application

    2. Deep cycle lithium battery pack 72V 40Ah Specification

    NO.ItemsCharacteristicsTesting Methods
    1Nominal Voltage76.8VFollow GB/T18287-2013>
    2Nominal Capacity40AhFollow
    3Minimum Capacity38AhFollow
    4Battery internal ImpedanceInternal Impedance≤150mRInternal Impedance Testing Machine(1kHz )
    5Shipment Voltage76.8~81.6VMulti-meter
    6DimensionLength530x240x222mmVernier caliper
    Width
    Height
    Gross weightApprox. 27kgelectronic scale
    7Working TemperatureCharge0~45℃,45~85%RHTemperature & Humidity Instruments
    Discharge-20~55℃,45~85%RH
    8Storage Temperature & Humidity RangeShort: above one month-20~+55℃,45~85%RHTemperature & Humidity Instruments
    Medium: above three months0~+45℃,45~85%RH
    Long:above one year+5~+30℃,45~85%RH
    9Allowed maximum continuous charge current40AMulti-meter
    10Allowed maximum continuous discharge current50A170A(8S)
    11Allowed maximum reverse charge voltageNO Allowed/
    12Allowed maximum charge voltage87.6±0.2VMulti-meter
    13Discharge cut-off voltage≤65VMulti-meter

    3. Deep cycle lithium ion battery 74V 40Ah Safety Test

    No.ItemsStandardsTesting Methods
    1Vibration TestingThe appearance of battery should not leakage, break or explosionFix a charged battery on a vibrating table, vibrate it for 90 minutes in three mutually perpendicular directions at the 0.8mm resonance. The frequency is to be varied at the rate of 1hz/min between 10 and 55 hertz.
    2High Temperature Discharge TestingThe battery should be no remarkable breakage, distortion. Discharge time should not less than 255minsPlace a full charged battery under the environments of 55℃ for 2 hours. Discharge it at the current of 200mA to the cut-off voltage. Then keep it at 20℃±5℃ for 2 hours.
    3Low Temperature Discharge TestingThe battery should be no remarkable breakage, distortion. Discharge time should not less than 180 minutePlace a full charged battery under the environments of -20℃ for 15-24 hours. Discharge it at the current of 200mA to the cut-off voltage. Then keep it at 20℃±5℃ for 2 hours.
    4Constant Humidity & Temperature TestingThe battery should be no remarkable breakage, distortion. Discharge time should not less than180minsPlace a full charged battery under the environments of 40℃ and 90% - 95%RH for 48 hours. And keep it in the room temperature for 2 hours. Then discharge it at the current of 200mA to the cut-off voltage.
    5High & Low Temperature StorageThe battery should be no remarkable breakage, distortion. And charge/discharge normallyPlace a full charged battery in a oven with 55±2℃ for2 hours, then keep it under 20±5℃ for 4hrs, then place it in a oven with -20±2℃ for 2 hours, then keep for 4 hours under 20±5℃, cycle as high temperature-normal temperature-low temperature-normal temperature-high temperature for 10 times

    4. Deep cycle lithium ion battery 72V 40Ah Dimension
    5. Application
    • Energy Storage System
    • Starter Battery
    • RV Camper/Caraven Battery
    • UPS Storage Battery
    • Forklift Battery
    • Golf Trolley/Cart Battery
    • EV Battery
    • Outdoor Portable Power Battery
    • Marine Battey
    • Battery Cell Application
