10Ah 12V Lithium Ion Battery Prismatic , Lithium 12v Deep Cycle Battery

Ask Lasest Price
Brand Name :	Topband
Model Number :	TB1210F-P110A
Certification :	CE/UN38.3/MSDS/UL
Price :	Negotiable
Payment Terms :	L/C, T/T
Supply Ability :	450Mwh/year
Delivery Time :	2~4weeks for samples; 4~6weeks for mass production

Add to Cart

Product Details
Company Profile

10Ah 12V Lithium Ion Battery Prismatic , Lithium 12v Deep Cycle Battery

1. Deep cycle lithium ion battery 12V 10Ah Feature

Good safety performance
High power, maxiumu discharge current up to 3C
Long cycle life time, ≥2000 cycles (100% DOD)
Low self-discharge
No Memory Effect
No pollution during manufacture and usage.

2. Deep cycle lithium ion battery 12V 10Ah Specification

NO.	Items		Characteristics	Testing Methods
1	Nominal Voltage		12.8V	Follow
2	Nominal Capacity		10Ah	Follow
3	Minimum Capacity		9.5Ah	Follow
4	Battery internal Impedance		Internal Impedance≤100mR	Internal Impedance Testing Machine(1kHz )
5	Shipment Voltage		12.8～13.6V	Multi-meter
6	Dimension	Length	MAX: 8080142mm	Vernier caliper
		Width
		Height
		gross weight	1.5kg	electronic scale
7	Working Temperature	Charge	0~45℃,45~85%RH	Temperature & Humidity Instruments
		Discharge	-20~55℃,45~85%RH
8	Storage Temperature & Humidity Range	Short: above one month	-20~+55℃,45~85%RH	Temperature & Humidity Instruments
		Medium: above three months	0~+45℃,45~85%RH
		Long:above one year	+5~+30℃,45~85%RH
9	Allowed maximum continuous charge current		10A	Multi-meter
10	Allowed maximum continuous discharge current		15A	Pulse current 300A/2S
11	Allowed maximum reverse charge voltage		NO Allowed	/
12	Allowed maximum charge voltage		14.6±0.1V	Multi-meter
13	Discharge cut-off voltage		9±1.0V	Multi-meter

3. Deep cycle lithium ion battery 12V 10Ah Electrical Characteristics

No.	Items	Standards	Testing Methods
1	Internal Impedance	Impedance≤100mΩ	Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test.
2	Nominal Capacity	10Ah	Rest for 0.5~1 hour after fully charge, Using electrical loader to connect with the battery output port, and discharge with constant current 0.2C till it can’t discharge. Do the cycle three times, if there is one time that the discharge time is equal or more than 285minute , you can stop.
3	Short circuit protection	No load ability after short-circuit .comeback capability of loading after remove the lead away,	Short the pack with the lead (<50mΩ). If remove the lead away, connect the electronic loader with P+, P- of protection board again, so load ability comes back.
4	Allowed Maximum continuous charge Current	10A	charging with allowed maximum current for more than 0.5h and the added temperature of battery pack less than 20℃.
5	Allowed Maximum continuous discharge Current	15A	Discharging with allowed maximum current for more than 0.5h and the added temperature of battery pack less than 20℃.
6	Over Current Protection	35~48A	Using electron load connect with output side, discharge with 35A for 2sec, Discharge with 48A for less than 40 ms；

4. Storage & Transportation

Based on the character of cell, proper environment for transportation of LiFePO4 battery pack need to be created to protect the battery.
Battery should be stayed in the ware house -20℃～35℃ where it’s dry, clean, shade, and well-ventilated.
The battery should be stored in 50% SOC during transportation.
The battery need to be charged every 6 months if out of use.
Keep the battery against dropping, turning over and serious stacking during loading.

5. Warning & Tips

Please read and follow the specification and caution remarks on battery surface before use the battery. Improper use may cause heat, fire, rupture, damage or capacity deterioration of the battery. Shenzhen Topband Battery Co., Ltd. Describes is not responsible for any accidents caused by the usage without following our specification.

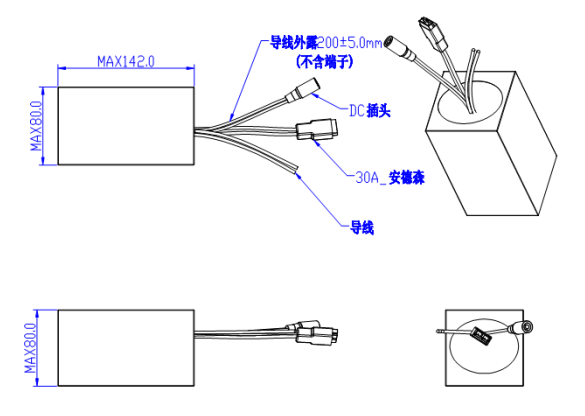

6. Deep cycle lithium ion battery 12V 10Ah dimension
