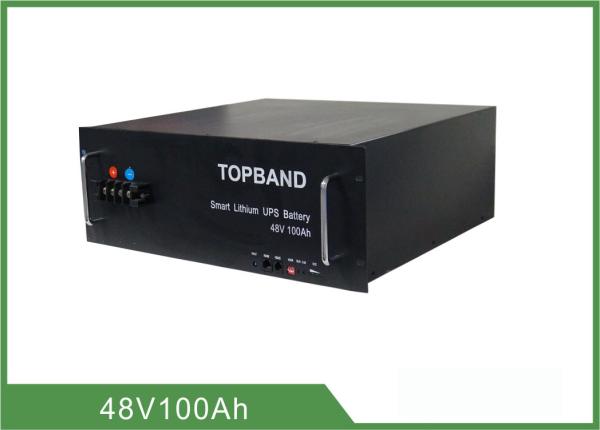

LiFePO4 Battery For Tele Communication , Over 4000 cycles 48V 100Ah
Lithium Battery
1. General Information
This specification defines the performance of rechargeable LiFePO4
battery pack TB48100F -T105D manufactured by TOPBAND NEW ENERGY CO.,LTD, describes the type,
performance, technical characteristics, warning and caution of the
battery pack.
2. Battery Specification(@ 25±5℃)
| NO | Items | Characteristics |
| 2.1 | Normal capacity | 100Ah |
| 2.2 | Nominal energy | 4.8 KWh (15S);5.12KWh(16S) |
| 2.3 | Nominal voltage | 51.2V (LFP-16S) |
| 2.4 | Internal resistance | ≤40mΩ @1kHz AC |
| 2.5 | Normal charge voltage | 54.7±0.3V(15S );58.4±0.3V(16S) |
| 2.6 | Float charge voltage(for Standby use) | 51.75±0.3V (15S);55.2±0.3V(16S) |
| 2.7 | Allowed MAX charge current | 50A |
| 2.8 | Charging limit current (optional) | 10A |
| 2.9 | Recommended charge current | ≤50A |
| 2.10 | Allowed MAX discharge current | 50A |
| 2.11 | End of discharge voltage | 37.5V (15S) 40V(16S) |
| 2.12 | Dimension | Length 482±2 mm |
| Depth 570±10mm |
| height 176±2 mm |
| 2.13 | Weight | Approx. 59kg |
| 2.14 | Operation temperature | Charge | 0～45℃ |
| Discharge | -20～60℃ |
| 2.15 |
Self-discharge rate | Residual capacity | ≤2%/Month; ≤10%/ year |
| Recover capacity | ≤1%/Month; ≤6%/ year |
| 2.16 | Storage environment | ≤1month | -20～+35℃,45～75%RH |
| ≥3month | -10～+35℃,45～75%RH |
| Recommend environment | 15～30℃,45～75%RH |
3. Electrical Characteristics & Test Condition
Testing Conditions: Ambient Temperature: 25±5℃; Huminity:45%~75%.
Normal charge:Charge battery under CC(0.33C)/CV(58.4V) mode until
over charge protection or the charge current reduce to 0.05C, and
then rest for 1h.
| NO | Items | Criterion | Condition |
| 3.1 | Normal Capacity | 100Ah | After Normal charge, discharge @0.33C current to the end of
discharge voltage. |
| 3.2 | Internal Impedance | ≤40mΩ | @50% SOC @1kHz AC internal resistance test instrument. |
| 3.3 | Short circuit protection | Auto cutoff load when short circuit | Connect the positive and negative of this battery pack through a
lead with 0.1Ω resistance. |
| 3.4 | Cycle life @DOD100% | ≥2000 cycles | After Normal charge,discharge @0.33C current to the end of
discharge voltage. Repeat above process until discharge capacity
reduce to 80% of initial value. |
| 3.5 | @0.33C Discharge temperature characteristic@0.33C | -20℃ | ≥70% |
Capacity @specified temperature  Capacity @ 25℃
|
| -0℃ | ≥80% |
| 25℃ | ≥100% |
| 55℃ | ≥95% |
| 3.6 | Capacity retention rate | remain capacity ≥96% | After normal charge, store the battery @25±5℃ for 28days, then
discharge capacity @0.33C,the retention capacity accord with
criterion. |
4. Circuit Protection
The batteries are supplied with a LiFePO4 Battery Management System
(BMS)that can monitor and optimized each single prismatic cell
during charge & discharge, to protect the battery pack overcharge,
over discharge, short circuit. Overall, the BMS helps to ensure
safe and accurate running.
| No | Item | Content | Criterion |
| 4.1 | Over charge | Over-charge warning for each cell | 3.60±0.03V |
| Over-charge protection for each cell | 3.80±0.03V |
| Over-charge release for each cell | 3.38±0.05V |
| Over-charge release method | Under the release voltage |
| 4.2 | Over discharge | Over-discharge warning for each cell | 2.80±0.05V |
| Over-discharge protection each cell | 2.50±0.05V |
| Over-discharge release for each cell | 2.90±0.10V |
| Over-discharge release method | Charging |
| 4.3 | Over current | Charge over current warning | 105±3A |
| Charge over current protection | 110A±3A |
| Charge over current release | Discharge or auto release after 1min |
| Discharge over current warning | 105±3A |
| Discharge over current protection | 110A±3A |
| Discharge over current release | Charge or auto release after 1min |
| Short circuit protection | Available |
| 4.4 | Temperature | Charge over temperature protection | Protect@55±3℃; Release@50±3℃; |
| Charge under temperature protection | Protect@0±3℃; Release@5±3℃ |
| Discharge over temperature protection | Protect@65±3℃; Release@60±3℃; |
| Discharge under temperature protection | Protect@-20±3℃; Release@-15±3℃; |
5. User guide
5.1 TB48XXF-T110X Operation principle and Wiring hint
Input 220Vac, after rectification power module, output 48V. When
the power grid normal, the battery will supply power according to
system requirement, and to be charged at same time; when power off,
the battery will supply energy, to make sure the DC power system
working normally, to realize uninterruptible power supply. The
power supply has second disconnection function, when the battery
voltage is low, the battery output would be cut off to protect
battery life.
5.2 Operation panel direction(TB48XX Series general reference)
Reset RS485 RS232 Dial switch RUN LED alarm LED SOC LED
5.3 sleep mode
The system would go into low-consumption mode in any of the
following conditions:
- Single module or the whole system over discharge protection not
recovered in 30s
- Press the keys for 3s
- The minimum single voltage lower than sleep voltage, and the
lasting time reach sleep delay time( no communication, no
protection, no balance, no current at same time).
- Standby more than 24h( no communication, no charge or discharge, no
AC input).
- Force shutdown through upper-computer software.
Before sleep mode, please make sure there is no input voltage,
otherwise it can no go to sleep mode.
5.4 wake up
- Connect to charger, and the charger output is more than 48V.
- Press the keys for 3s;
- Connect to communication cable, open upper computer software( if it
goes to sleep mode due to over discharge protection, this method
would not wake up the circuit board).
Remark: single model or the whole system goes to low-consumption mode
after over discharge protection, it would be wake-up every 4hs, to
open discharge MOS. If it can be charged, it would exit sleep mode
and start normal charge; if it fails to be charged after 10times of
wake-up automatically, there would be no automatic wake-up.
5.5 Installation drawing
Case dimension: 482(Width) * 570(Depth) * 176(height) mm；
Handle Depth:35mm; weight:Approx.59kg.
